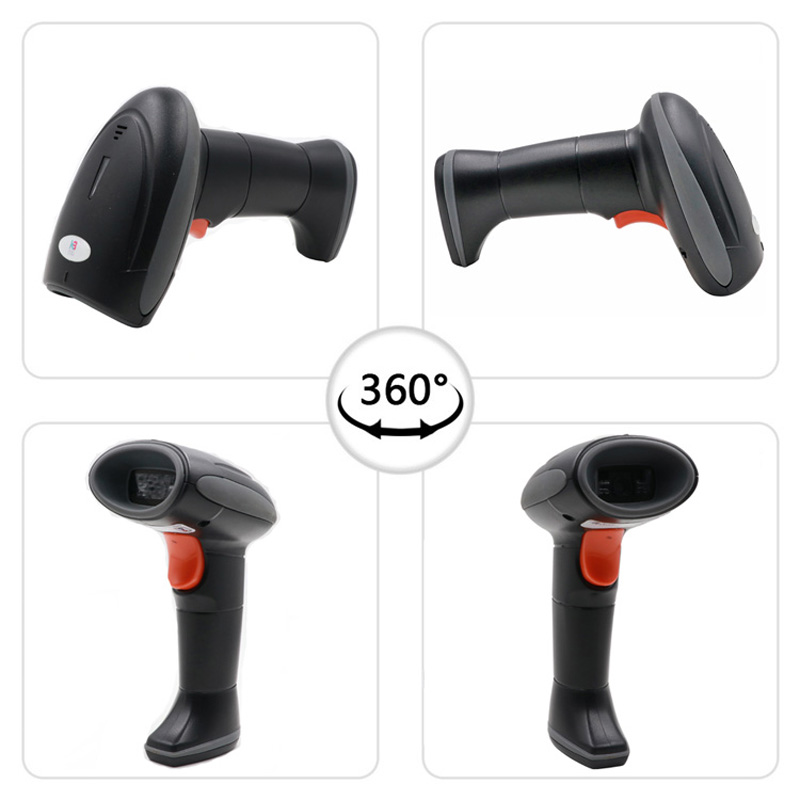

Wireless Barcode Scanner CMOS Barcode Reader 1D 2D Handheld Bar Code Scanner
For Receipt Cash Register Inventory Bank Cheque
This is a wireless 2.4g handheld barcode scanner with high cost–performance Ratio. The product has excellent paper and screen barcode scanning performance. It has high-Speed Reading capability and it can quickly read fuzzy, damaged, reversed, color, incomplete 1D or 2D barcode, besides, SD5230 can work in a wide range of temperature and humidity under various lighting environments (including completely dark environments). With an advanced image recognition algorithm., SD5230 is suitable for smart scenarios such as restaurant, supermarket, hotel, governments and so on.
We do OEM orders, something like Design, Structural construction, Molding, Project Design, etc.
Like PCB design as:
| Performance Parameter | Performance Parameter | |
| Optical Source | white | |
| Capture pixel | 640*480 ( 0.3 mega pixels ) | |

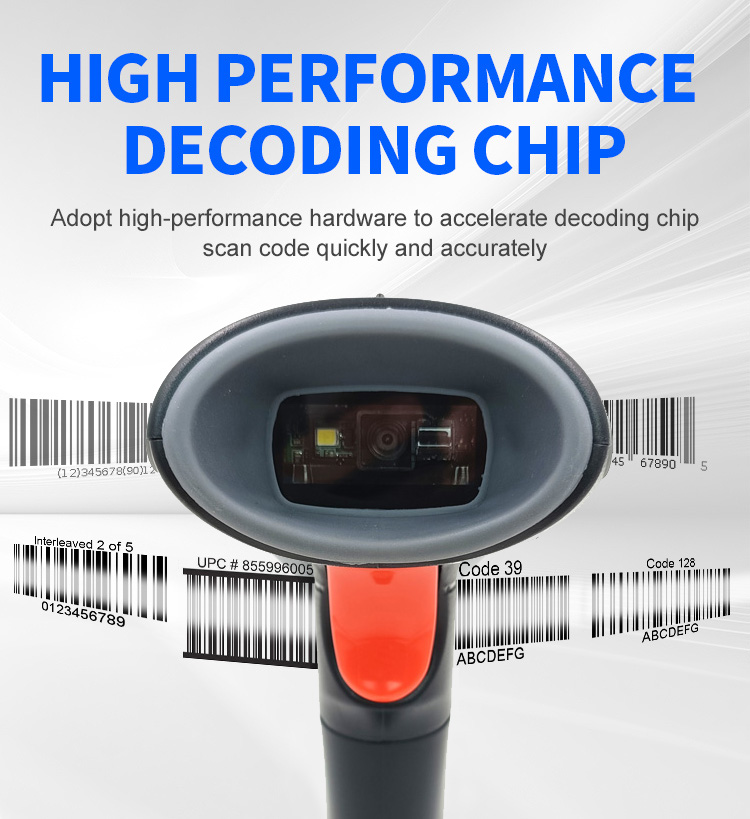

| Barcode Types | 1D：Codabar、Code39、Interleaved2of5、NEC2of5、Code93、 GS1-DataBar、
Code128、GS1-128、UPC-A、UPC-E0、EAN/JAN-13、EAN/JAN-8、Code32 |
|
| 2D:QR code、Data Matrix、PDF417、Aztec Code | ||

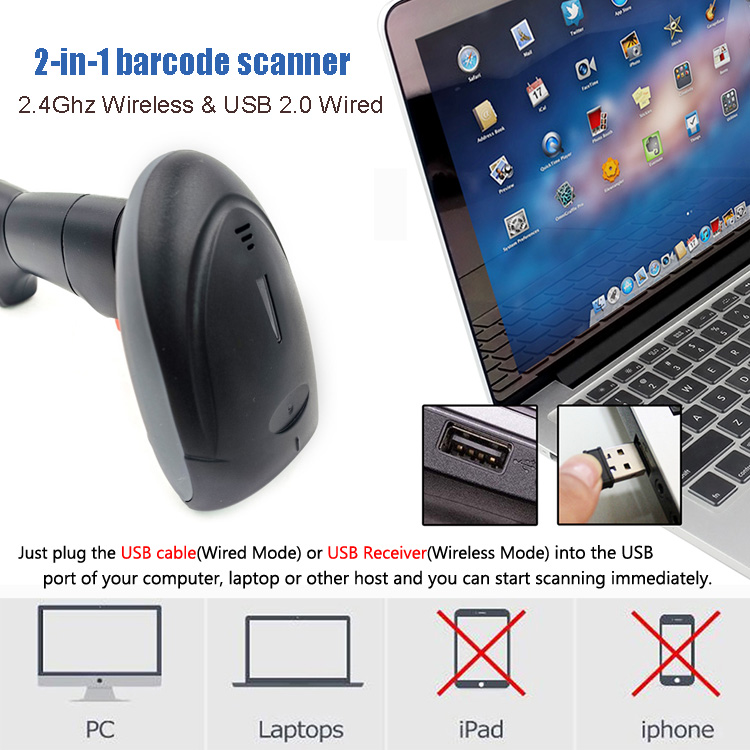

| transmission mode | 2.4G | |
| transmission distance | 0-30m | |

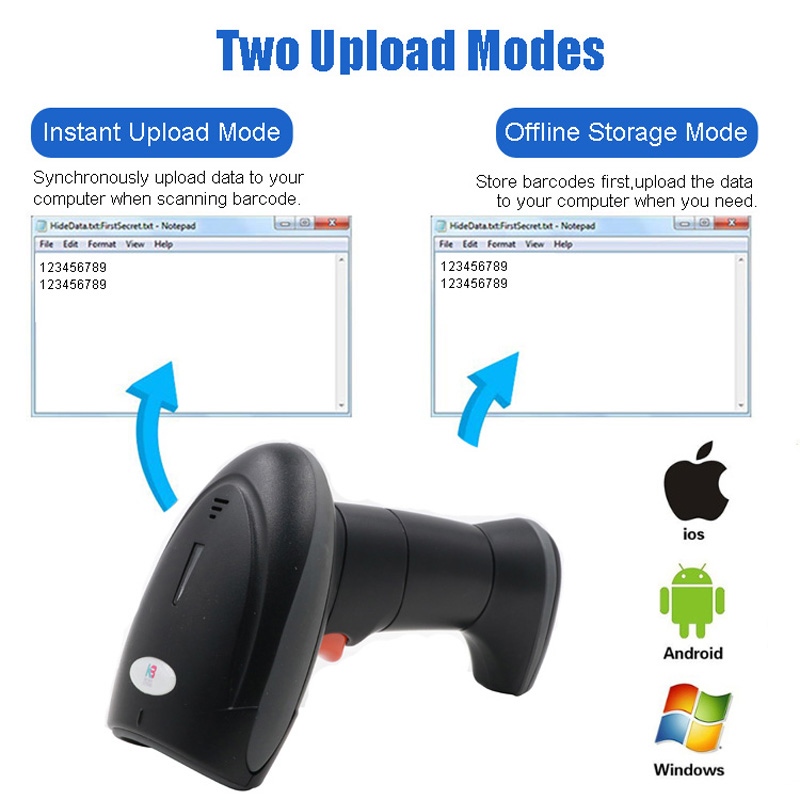

| Working mode | Normal、Inventory mode, non-loss patterns; | |
| transmission mode | USB | |
| Matching method | scanning match | |
| Printing contras | ≥20% | |
| Image Resolution | QR≥7mil,code128≥5mil,code39≥5mil | |
| Reading Agle | Deflection 360°，Rotate 40°, Tilt40° | |
| Scanning angle | 36°（Level），27°（vertical） | |
| Depth Filed | Code39(5mil) | 3-9cm |
| Code39(13mil) | 4-20cm | |
| QR(15mil) | 3-17cm | |
| Screen QR(23mil) | 10-50cm | |
| Data Interface Port | TTL-232,USB | |
| Voltage | DC +3.3v±5% | |
| Working Current | 200mA | |
| Indicator | Siren and LED light,Notify Vibrate | |

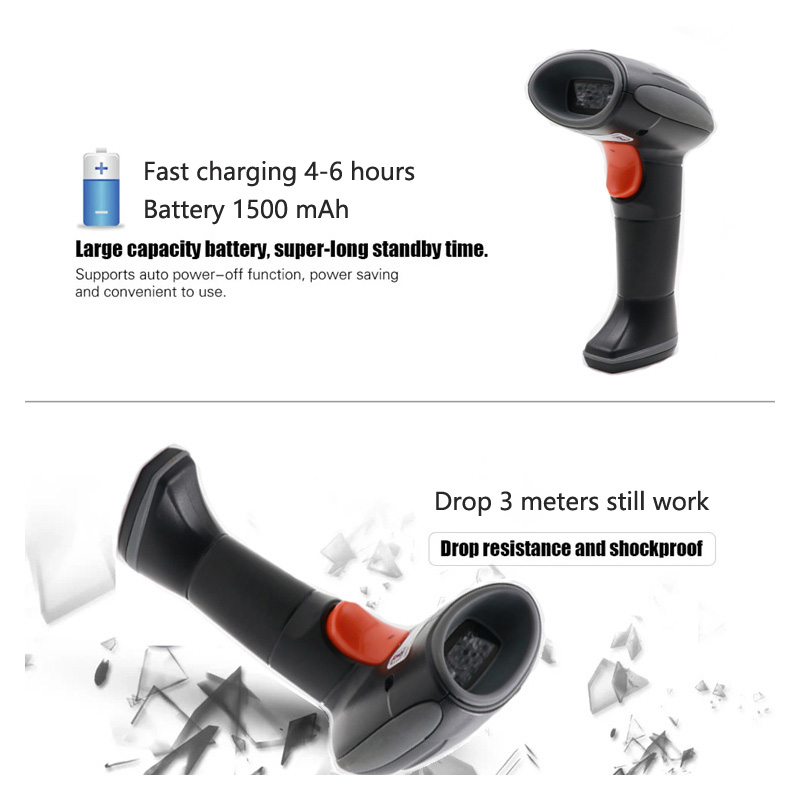

| Memory capacity | 1500Mah | |
| Battery capacity | 2M(Around 80000pcs messages) | |
| Scanning method | manual trigger/continuous scanning/Automatically Inductive | |
| Working Temperature | -20℃~60℃ | |
| Ambient illumination | Normal indoor light beat | |
| relative humidity | 5% ~ 95%（Non condensing） | |
| Cable length | 1.5 m | |
| Product size | 190mm*109mm*85mm | |
| Packing box | 20cm x 11cm x 8cm | |
| N.W | 200g | |
| G.W | 300g | |
