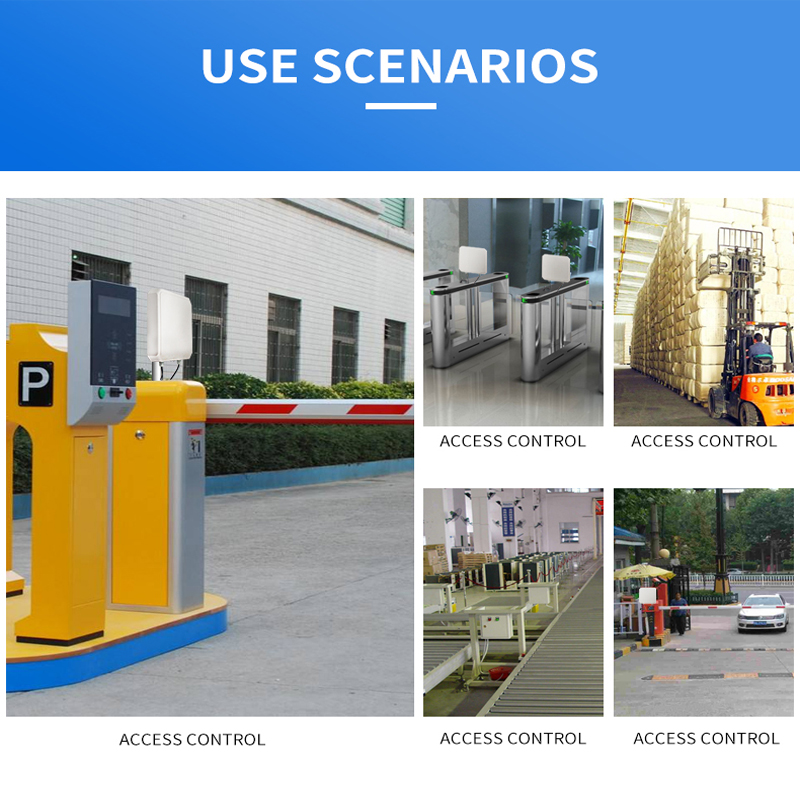

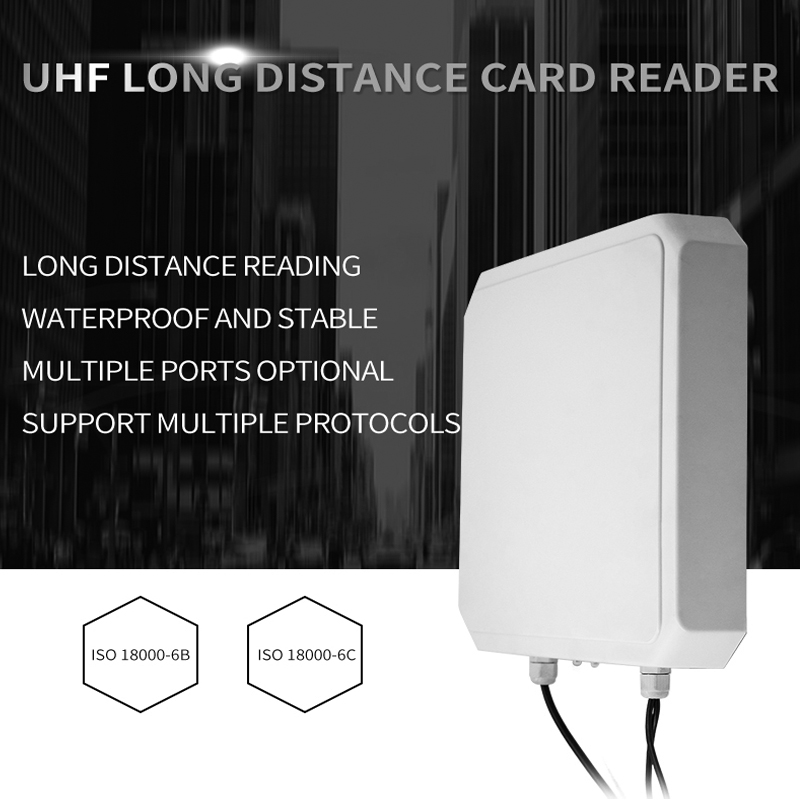

The Waterproof Vehicle Management 10M UHF RFID Long Range Reader is an electronic device that uses radio frequency identification (RFID) technology to read and track vehicles in a long range up to 10 meters. It is designed to be waterproof, durable and suitable for outdoor use. This type of reader is commonly used in various applications such as parking management, toll collection, access control, and asset tracking. It allows for efficient and accurate collection of data, helping to improve overall management and security.
Inquiry| Model | R16-9DB |

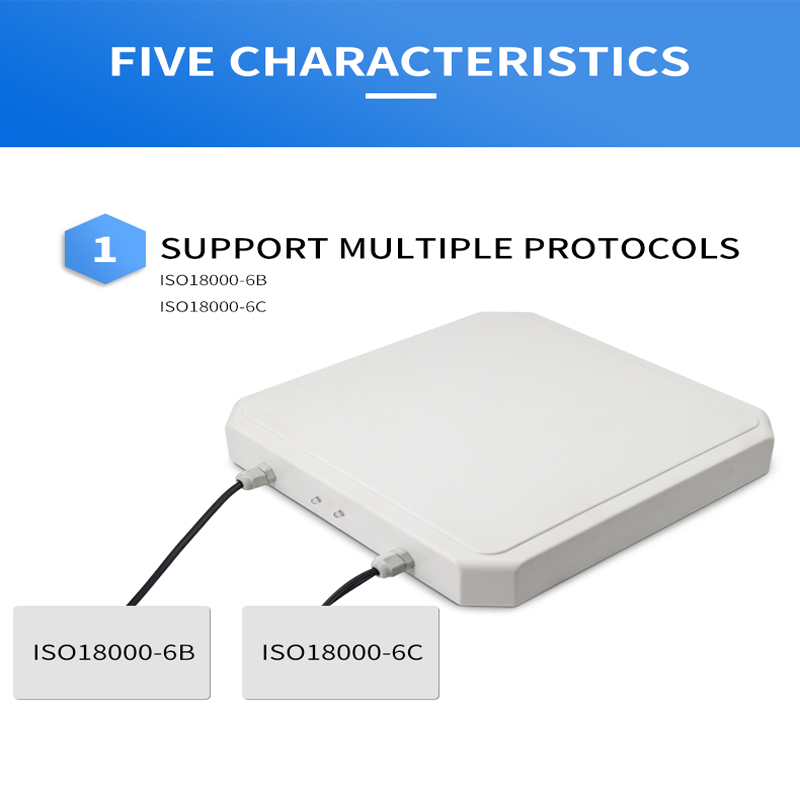

| Supported protocols | ISO18000-6B,ISO18000-6C(EPC GEN2) |
| working frequency | ISM 902~928MHz and ISM 865~868MHz,Other frequency standards (customized) |
| Operation mode | FHSS |
| RF power | 0~30dBm,Software Programmable |
| Reading speed | Single card average reading is 64bits, less than 6ms,
Software Programmable |
| Work mode | reading Active and reading passive, Software Programmable |
| Communication Ports | N:Wiegand26/34/98, RS485,RS232 ,USB
E:Wiegand26/34/98, RS232,TCP ,USB |
| Input interface | 1 way trigger input |
| Reading range | 0-6 m(High power 0~10m) |
| Status indicators | buzzer |
| Antenna | 9dbi circular antenna |
| Power supply | DC+9V |
| Size | 257mm×257mm×42mm |
| Weight | 1.45 Kg(Package:2.45kg) |
